We deliver the B100L.
B100L Schneider series
Load bank 100 kW for generator testing, UPS and battery testing, commissioning and as a controllable load. Tell us what you need to test and we send a datasheet and a quote.
See the load bank

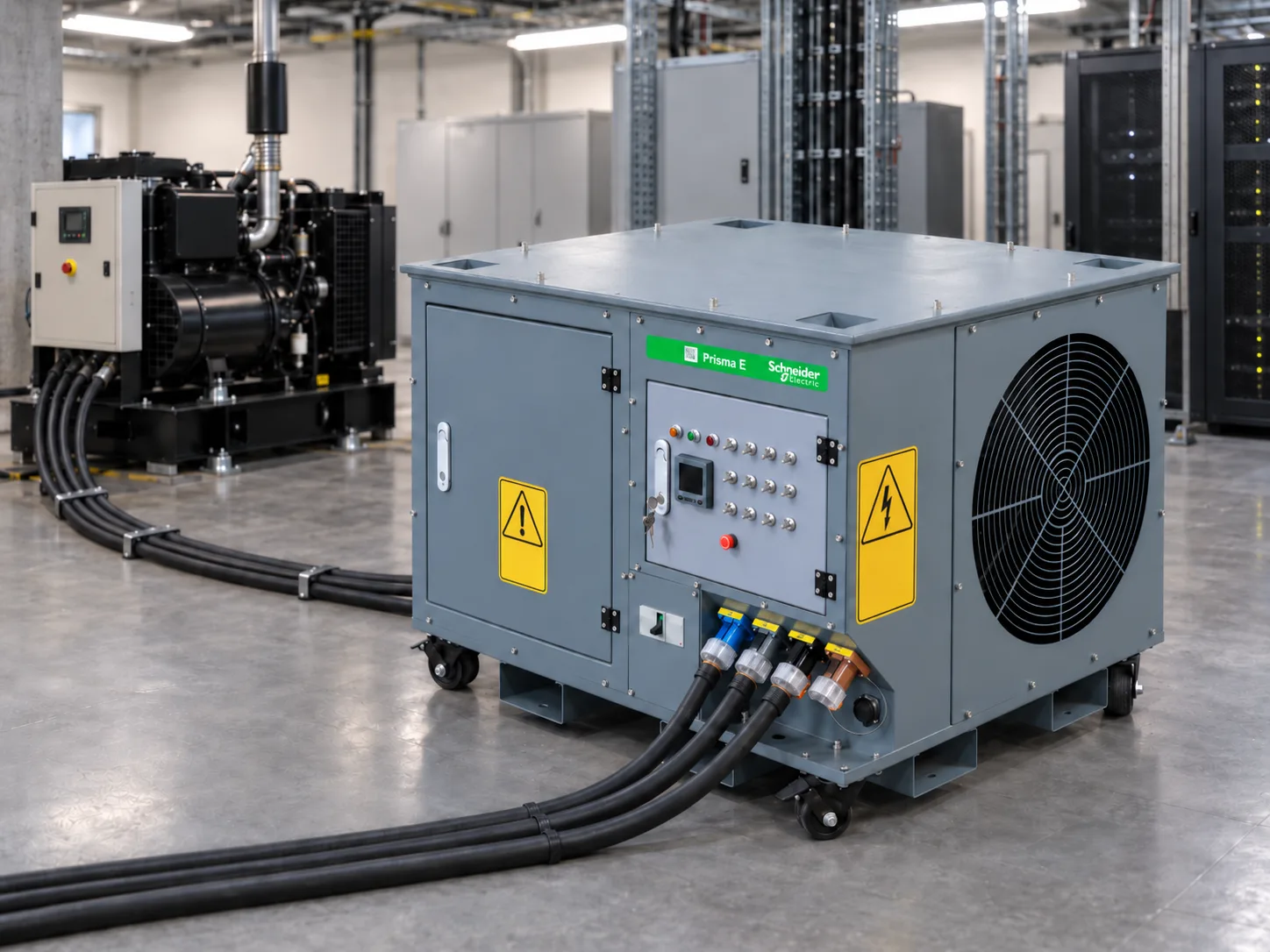

A 100 kW load bank in operation.
Why own a load bank
Many uses
Test backup generators, UPS and batteries, commission solar, wind and charging, use it in a test room or as a controllable load for the grid. Load step by step up to full power.
Easy to control
Push buttons on the unit or remote control from a PC. Test when it suits you.
Built for hard use
Thermal cut-out, air flow switch, fan overload protection and emergency stop.
Specifications
- Series
- Schneider series
- Capacity
- 100 kW
- Model
- B100L
- Control cabinet rating
- IP54
- Voltage
- 400 V AC, 50 Hz, 3 phases (standard). 600 V, 800 V and other voltages to order
- Steps
- 1 kW smallest step (standard). Step layout customised to order
- Size and weight
- Request datasheet
- Control
- push buttons on the unit, remote control from a PC
- Protection
- thermal cut-out, air flow switch, emergency stop
- Country of origin
- China
- Customisation
- voltage, step layout, control, connections and enclosure to your specification
Request a quote
Tell us what you need to test. We reply within one business day with a price including freight to your site.
- Help choosing the right size
- Lead time on request
- Reply within one business day
